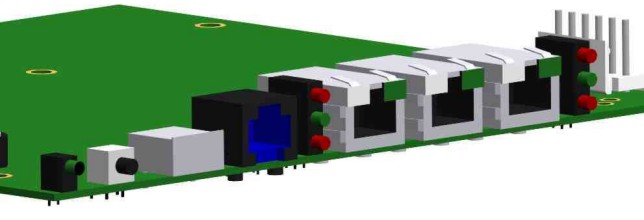

The Pushbutton switch, indicator light, and connector sockets, need functional testing on this WatchGuard PCB.

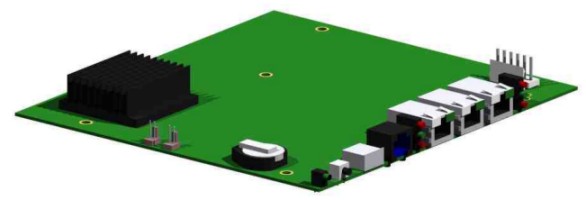

Board close up.

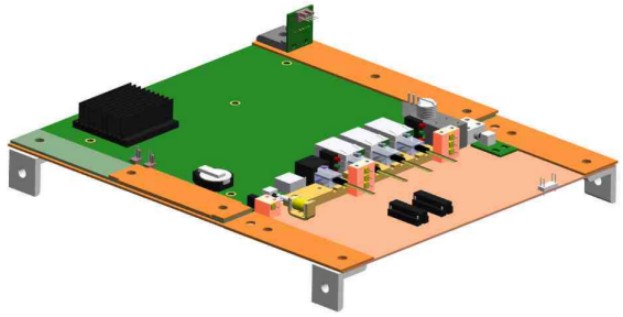

A test fixture was designed with UUT guide rails, switch actuator, RJ45 plugs and holder (top removed), LED indicator sensors, power connector, and board insertion switch.

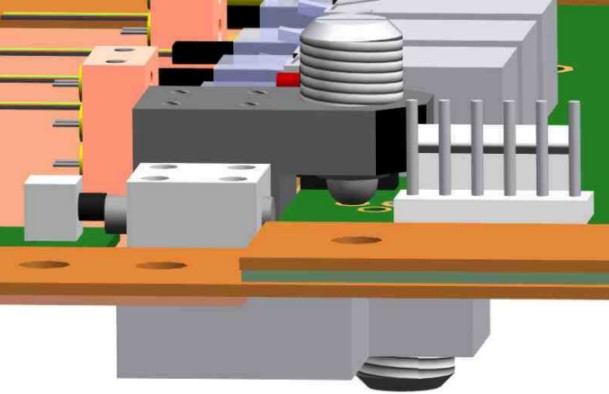

Close up of power connector area. Since the barrel jack was not not installed spring loaded ball pins were used for the test fixture.






Board test rack.
