Institute for Systems Biology Example

PROJECT: To enable POSAM (piezoelectric oligonucleotide DNA synthesis array machine) with machine vision to inspect for improper phosphoramidite droplet dispensing via an ink jet print head. Imaging system required to capture 47 X 35 clear ~100 micron diameter droplets on a clear slide with 13.2 millimeter wide field of view and 135-millimeter working distance. The project required collimated illumination.

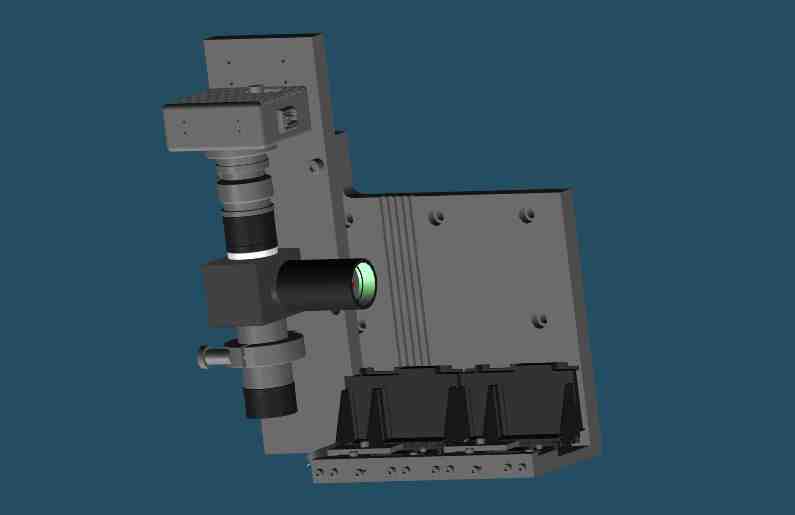

CAD model of head assembly with out phosphoramidite dispensing vials.

With dispensing vials.

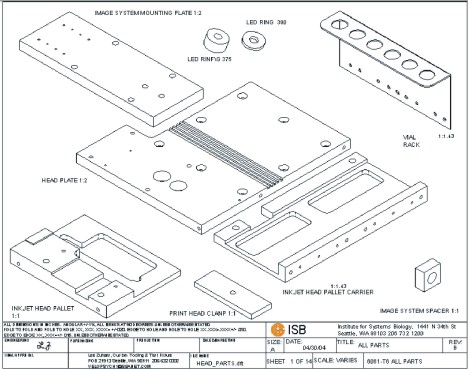

Individual head parts.

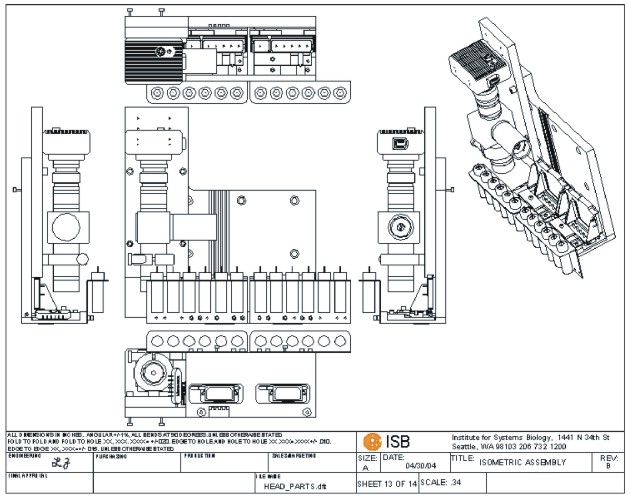

Assembled head parts.

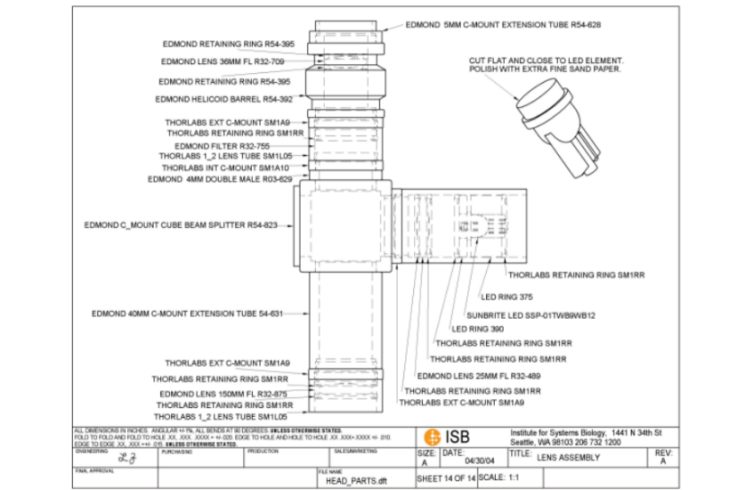

Lens stack up.

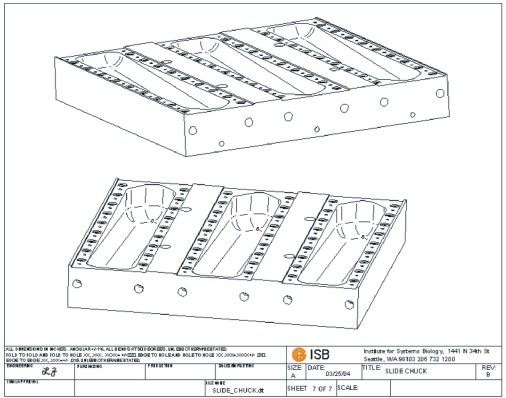

New vacuum slide chuck.

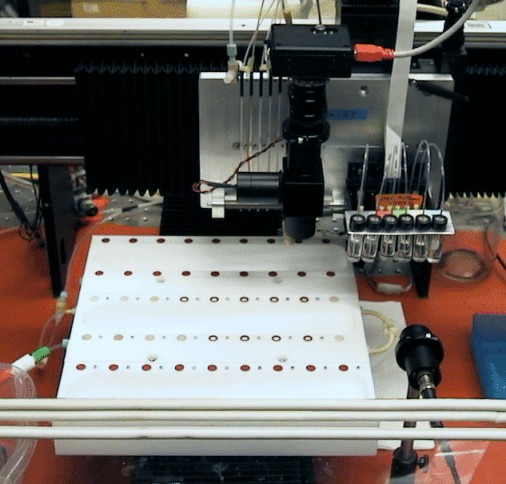

View of camera mounted on old head assembly with new vacuum slide chuck.
