More Examples

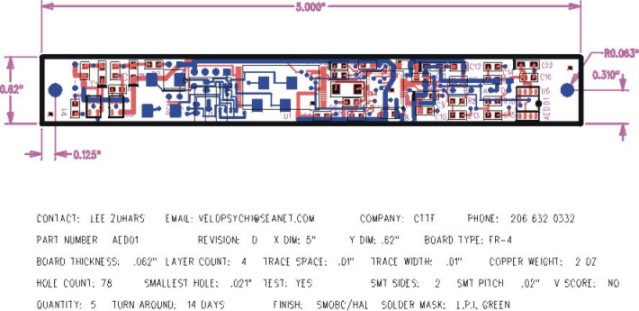

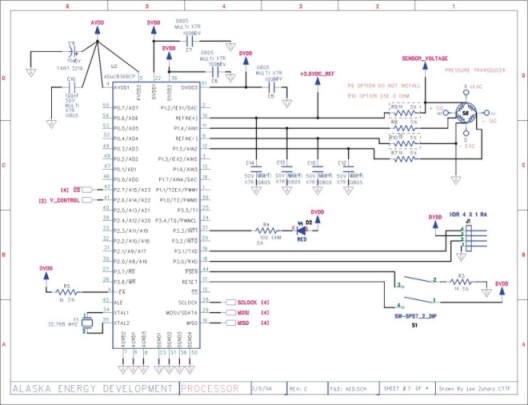

Designed circuit, layout circuit board, and programmed the ADUC836 (smaller IC) using Accutron development tools. Device used for oil well monitoring.

Actual size on a 17" monitor set to 1024 X 768 DPI.

Dental impression laser alignment tool CAD model, Kois Center.

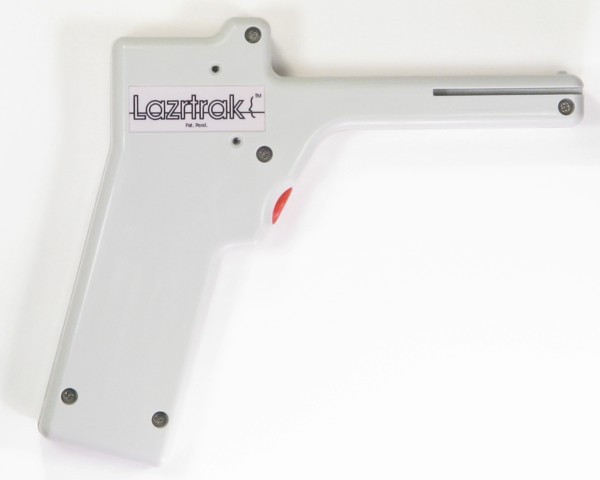

laser alignment tool side view

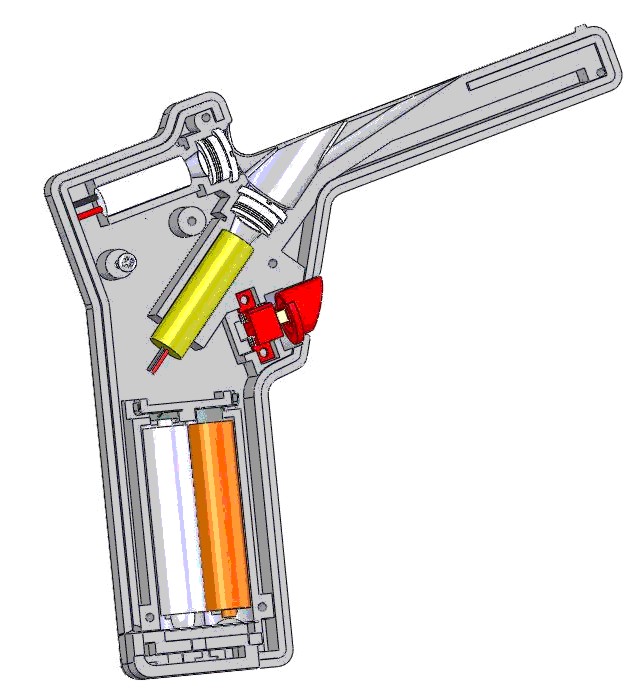

Laser alignment tool internal view

IC extraction tool.

Prototype bread board circuit.

Designed, fabricated, and programmed automatic functional tester able to accommodate device under test in or out of electronic enclosure.
